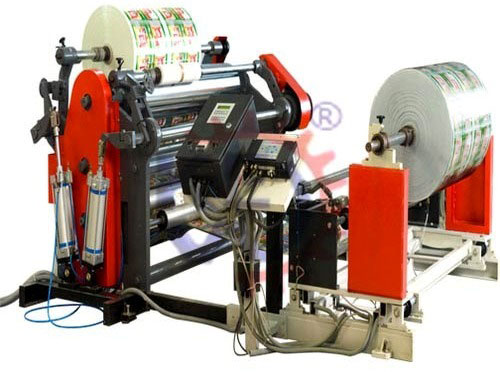

Slitter Rewinder Machine

We have been successfully manufacturing, exporting & supplying all types of Slitter Rewinder Machine since last 25 years from Ahmedabad, Gujarat, India. We are winner of 3 times National Award and 2 times International Award for Quality manufacturing

KEW manufacturers, exports & supplies highest number of Slitting Rewinding Machine from India, with more than 1400 installations all over India and overseas like Saudi Arabia, UAE, Dubai, Sharjah, South Africa, Nigeria, Ghana, Congo, Kenya, Zambia, Sri Lanka, Bangladesh, Malaysia, Pakistan, Nepal, Russia, Thailand, Indonesia, Brazil, Colombia, Venezuela, Argentina, Mexico, Canada, etc. and Slitting of all types of material like Plastic, Paper, Flexible Packaging, PVC, Aluminum Foil, Stretch Film, LDPE Film, BOPP Film, BOPP Tape, OPP, METPET, Pet Film, OPA, Non-Woven Fabric, Paper Board, Adhesive Tape, Film Ribbon, Textile Cloth, Nylon Fabric, Micro Tape, etc. makes us most experienced manufacturer, exporter & supplier of Slitter Rewinder Machine from Ahmedabad, Gujarat, India. In addition to above, our Slitting Rewinding Machine is also used for Slitting of Laminates, Coated Paper, Telex & Fax Roll, Adhesive Tapes, Photograph Paper, Ice Cream Cup Paper, Laminated Film, Cling Film, etc.

After Printing in Rotogravure or Flexo Machine or Extruded materials, our Slitter Rewinder Machine comes in use for Slitting of all types of material. Our machine is an ultimate Slitter and Rewinder Machine for its accurate slitting and rewinding qualities. It ensures perfect slitting of rolls with consistent, flawless results and constant line speed. It is available in adaptable model to suit your requirement. Our Slitter Rewinder Machine is available in Rewinder, Duplex surface slitter and Rewinder and Canti lever differential slitter and Rewinder. Our Slitting Machine is renowned for its accurate slitting at a higher speed and vibration less working.

KEW offers Slitter Rewinder Machine for various types of materials:

• Plastic Slitter Rewinder Machine
• Paper Slitter Rewinder Machine
• PVC Slitter Rewinder Machine
• Aluminum Foil Slitter Rewinder Machine
• Stretch Films Slitter Rewinder Machine
• Polyester Film Slitter Rewinder Machine
• LDPE Film Slitter Rewinder Machine
• BOPP Film Slitter Rewinder Machine
• BOPP Tape Slitter Rewinder Machine
• OPP CPP Films Slitter Rewinder Machine
• METPET Film Slitter Rewinder Machine
• PET Film Slitter Rewinder Machine
• OPA Film Slitter Rewinder MachineM
• Non Woven Fabric Slitter Rewinder Machine
• Woven Sack Slitter Rewinder Machine
• Paper Board Slitter Rewinder Machine
• Adhesive Tape Slitter Rewinder Machine
• Film Ribbon Slitter Rewinder Machine
• Textile Cloth Slitter Rewinder Machine
• Nylon Fabric Slitter Rewinder Machine
• Micro Tape Slitter Rewinder Machine
• Coated Paper Slitter Rewinder Machine
• Ice Cream Cup Paper Slitter Rewinder Machine
• Fax Roll Paper Slitter Rewinder Machine
• Laminated Film Slitter Rewinder Machine
• Cling Film Slitter Rewinder Machine

KEW Slitting Rewinding Machine ensure perfect slitting of rolls with consistent flawless quality and constant line speed. It is available in adaptable model to suit your requirement.

• Most versatile, model providing combination of duplex center cum Surface Rewinder Machine
• Constantly flawless slit rolls by providing center driver drum to maintain. Fixed minimum distance between slitting and rewind point
• Constant line speed causes constant tension rolls
• Two Rewinding shafts carried on swinging arms are center driven through adjustable slipping clutch
• Counter balance system to adjust the pressure between rewind reels and center drum
• Suitable for off caliper / slippery / stretchy material
• In special case rewinding shaft can be supplied with provision of individual. Different slip assembly for each slit reels
• Slitting methods as per customer requirement like: Scissor cut/crush cut (Circular knives)/ Razor blade slitting system
• Side Frame Construction of Ribbed Anti Vibration C.I Body.
• Rewind – Central Drum Or Duplex Type.
• Dynamically balances drive rollers.
• Trim Separation by Air Blower of 1.0 hp AC Motor.
• Line Speed up to 100 – 200 meter /min. Depending on the thickness of the materials & operating conditions.
• Customized Roll Handling System For Enhanced production & Ergonomic Safety.
• AC/DC Drive system.

• Web width: 400 to 4000 mm
• Max. dia. Of stock roll: 600 – 1000 mm (1200 mm – 1400 mm Optional)
• Min. slit width: 25 mm
• Dia. Of finished roll: 400 to 600 / 1000 mm / 1200 mm – 1400 mm (Optional)
• Operating speed: 3-15 HP at 415 V, 3 Phase , 50 cycles A.C. Supply

• Auto tension control for unwind unit
• KEW Web edge guide system (Hydraulic / Digital ultra sonic)
• Pneumatic system for Arm / Clutch / Brake / Nip
• Air shaft for unwind station
• Digital line edge guide system Safety chucks Bow rollers
• Four motor synchronised drive

SHAFT WINDER SLITTER REWINDER MACHINE

DUPLEX CENTER SHAFT TYPE SLITTER REWINDER

• Max. Web Width : Up to 1500mm
• Unwind Reel Dia. : 1000mm
• Rewind Reel Dia. : 450mm
• Max. Machine Speed (Design) : 150 Mtrs/Min.

• One Mechanical / Automatic Web guiding system.
• One Mechanical / Automatic Brake.
• Min. Slit Width 100mm
• Razor Cutting. (Standard) (Circular Knife) (Optional)

• Type of rewinding duplex differential.
• Rewind control through, two clutch assemblies mechanical.
• Two lay on roll.
• Individual slip ring arrangement as per require cut.

• With one full width Capacity, hard chrome plated steel roller 150mm
• Dia. and one 150mm dia. synthetic rubber roll.
• One Pressure adjusting device Mechanical for Nip Roller Pneumatic (Optional).

• Variable A.C. drive with Blower & Power Pack.

• Auto Tension Control for unwind/Rewind. Line guide system.
